PedalPusher
Pro Audio meets guitar pedals. Audio Simplified’s Pedal Pusher joins the Wolff Audio product pack.
Turn Pedals into Plugins! Insert in DAW via Dante.

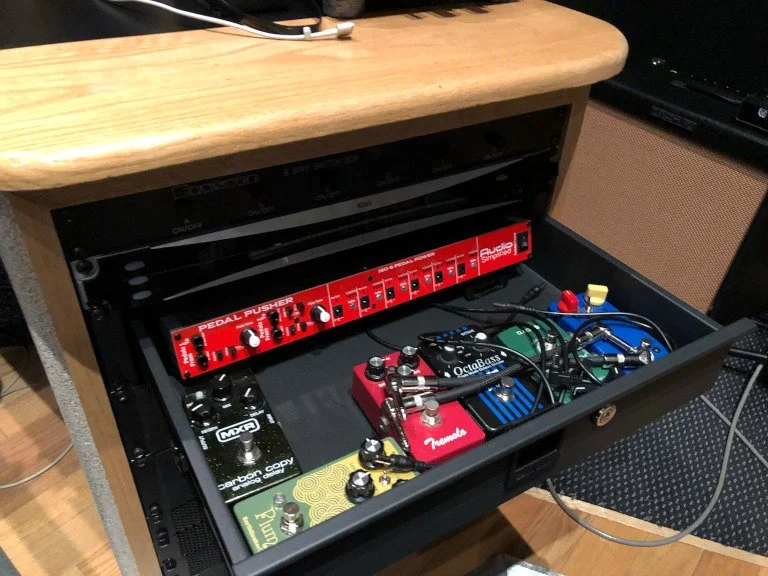

PedalPusher is designed to incorporate guitar pedal effects into a console or workstation. It has two effect loop channels and includes six high quality isolated power supplies for powering pedals.
Audio Simplified is now a part of Wolff Audio. The PedalPusher is being updated with some clever new features and will be released under the Wolff Audio brand soon!
Read about PedalPusher in Sound on Sound review.
Guitar Pedals and Dante in the same box? Get access to the unlimited tones and tools of guitar pedals - while tracking or mixing.
PedalPusher
|
PedalPusher |
Key Features
Line Inputs:
Nominal/Max Level: +4dBu/+24dBu
Impedence: 48kΩ differential
Line Outputs:
Nominal Level: +4dBu
Max Balanced Output: +27.5dBm into 600Ω
Frequency Response:
20Hz to 20kHz +0.01dB, -0.11dB
Noise Level: -101.3 dBa
Distortion:
THD: .00114%
IMD: .00287%
A/C Current: 1.5A@115VAC
Voltage Range: 80-246vac
Frequency Range: 47-63Hz
6 Isolated DC Supplies: 500ma@9V
Voltages available: 9v, 12v, 18v, 24v
Width: 375mm, Height: 42mm Depth: 100mm
Dante
Sample Rates: Standard up to 96k
Ports: 2
Dante/Analog
Outputs: Dante and analog simultaneously
Inputs: Dante or analog switchable
Accessories:
Rack Ears
Controls: Pickup Simulation and EQ
