500 series

TUTTI

A Paul Wolff and Sunset Sound collaboration to capture the famous "Floater" micpre found in Sunset Sound’s legendary Studio 1 console.

TUTTI

|

TUTTI |

All the flavor, heft and history!

The Tutti microphone and instrument preamplifier is designed and produced in collaboration with Wolff Audio and Sunset Sound Recorders, Hollywood. The product is made in tribute to Tutti Camarata, an audio innovator and the founder of Sunset Sound. Tutti, along with his internal engineering staff, created the original preamp that was installed into the Sunset Sound Studio 1 console and used to record thousands of tracks in legendary sessions. Paul Wolff along with Tutti’s son Paul Camarata, have painstakingly developed this 500 series version of the renowned and now classic preamp. Attention to detail was a top priority, so naturally, Cinemag transformer designer David Geren who produced the original transformers, was utilized to make today’s version.

The Tutti is elegant yet simple. Well-engineered by people who know what it takes to capture exceptional tracks for legendary performances. Built with top quality components to add warmth and precision that will be a welcome addition to any session.

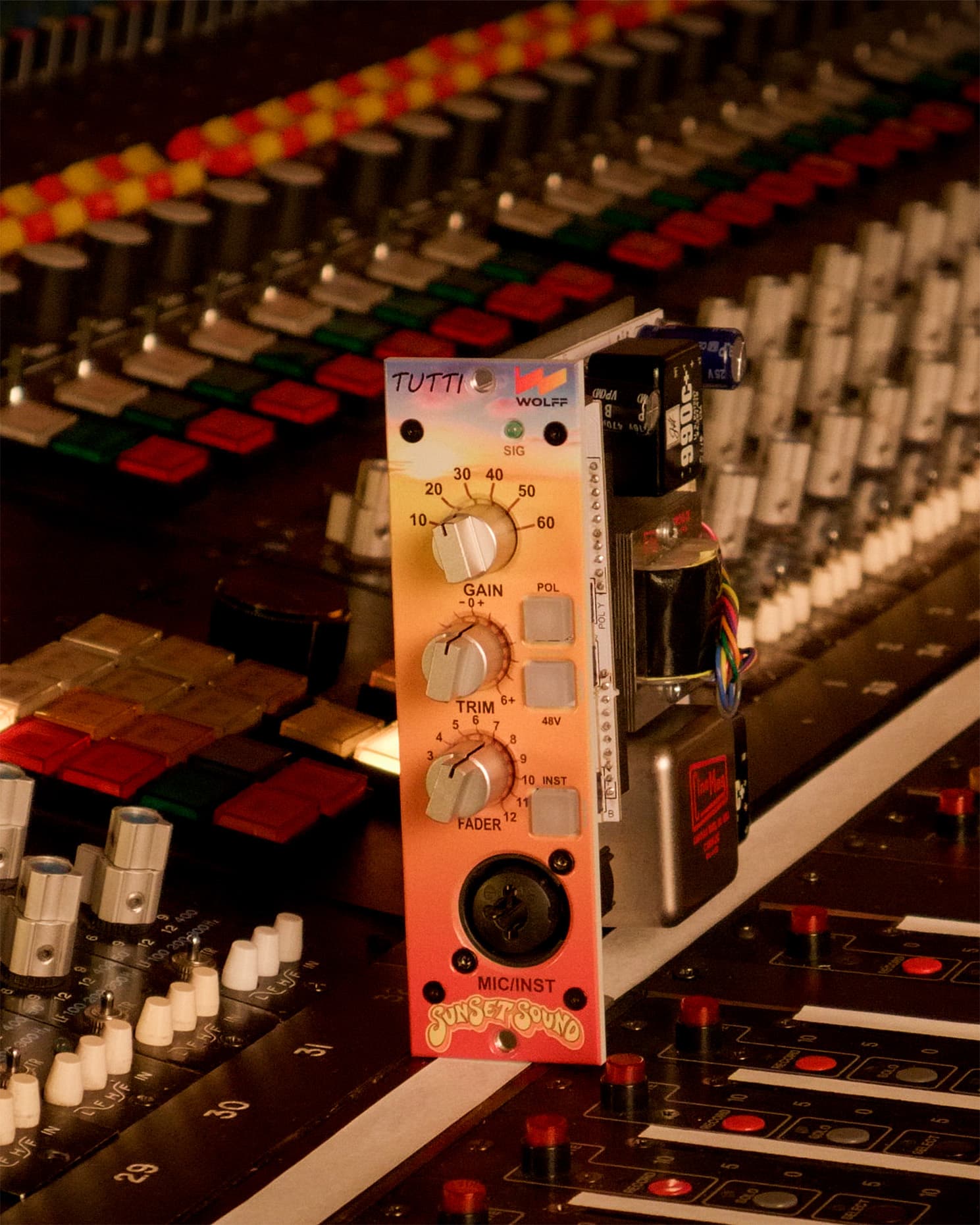

FRONT PANEL CONTROLS FOR THE SUNSET SOUND TUTTI DISCRETE MIC PRE

SIGNAL INDICATOR

SELECTABLE INPUT GAIN, 10dB STEPS

OUTPUT POLARITY SELECTOR

48 VOLT PHANTOM POWER SELECTOR

ADJUSTABLE GAIN TRIM, ± 6dB

INSTRUMENT INPUT SELECTOR

FRONT XLR MIC AND HI-Z INPUT

Once you work with a Tutti mic pre you’ll understand why it was so successful decades ago and is considered a true classic today, just like its namesake.

SPECIFICATIONS

GREEN SIGNAL INDICATOR


FIXED INPUT GAIN SELECTABLE IN 10DB STEPS


ADJUSTABLE GAIN TRIM ±6DB CONTINUOUS


SELECTABLE MIC AND HIZ INSTRUMENT INPUT


LESS THAN 0.03% DISTORTION <100HZ


SWITCHABLE OUTPUT POLARITY


PHANTOM POWER SELECTION - NO POPS WHEN SWITCHING


FRONT CONNECTOR MIC 150/1500 OHM; TRS 100K OHM


CUSTOM DUAL CINEMAG NICKEL I/O TRANSFORMERS


MINIMAL PHASE SHIFT IN THE USEABLE RESPONSE RANGE


DRAWS < 100M/AMPS PER RAIL


DISCRETE DUAL 990 OP-AMPS


MORE THAN 60DB OF GAIN


CLIP ONSET AT +28 DBU


FLAT RESPONSE FROM 10HZ TO 60KHZ


OUTPUT FADER CONTINUOUS INF TO 65DB
