PROPATCH 128R
64 in/64 out analog patchbay in 1U. No noise, no crosstalk, no distortion. Software controlled, recallable routing of complex signal chains.
PROPATCH 128R
|
PROPATCH 128R |
Relay based. Pristine signal path. Zero compromise.
ProPatch is the next generation software-controlled, analog patchbay.
The #1 job of a patchbay is to route audio with 100% transparency. To accomplish this, ProPatch uses a matrix of relays (a LOT of them). No FET switches, no games with gain staging, no electronics in the signal path, no compromises. Routing in ProPatch has zero effect on your audio signals because the path is effectively a “straight wire.”
ProPatch signal chains are configured and managed using an app that supports Windows, Mac or iPad OS. The app provides easy to use creation of complex device chains, including mults, mono to stereo, inserts, processors, AB groups and many more intuitive and useful shortcuts. All of these can be saved, recalled and associated with sessions.
Connect your audio processors like “plugins.” Drag and drop your devices into complex audio chains that can be edited, auditioned and recalled instantly.
Using relay switching has many advantages. It is ultra-reliable, based on telecom-scale technology rated for millions of cycles. It requires little power to operate and generates no heat, eliminating the need for a fan. Because the signal path is “just a wire,” it can pass full bandwidth audio signal, mic level, phantom power, control voltage, digital audio and MIDI. It is agnostic to the signals being routed. The relays are latching, so if a ProPatch loses power, the current routing remains in effect.
The soft click of a physical relay cues that routing changes have happened. Connect the web enabled app to ProPatch via USB-C, Ethernet or WiFi. Use the app to setup or adjust current routings or to configure and store new presets. The last configuration will load immediately on power-up.

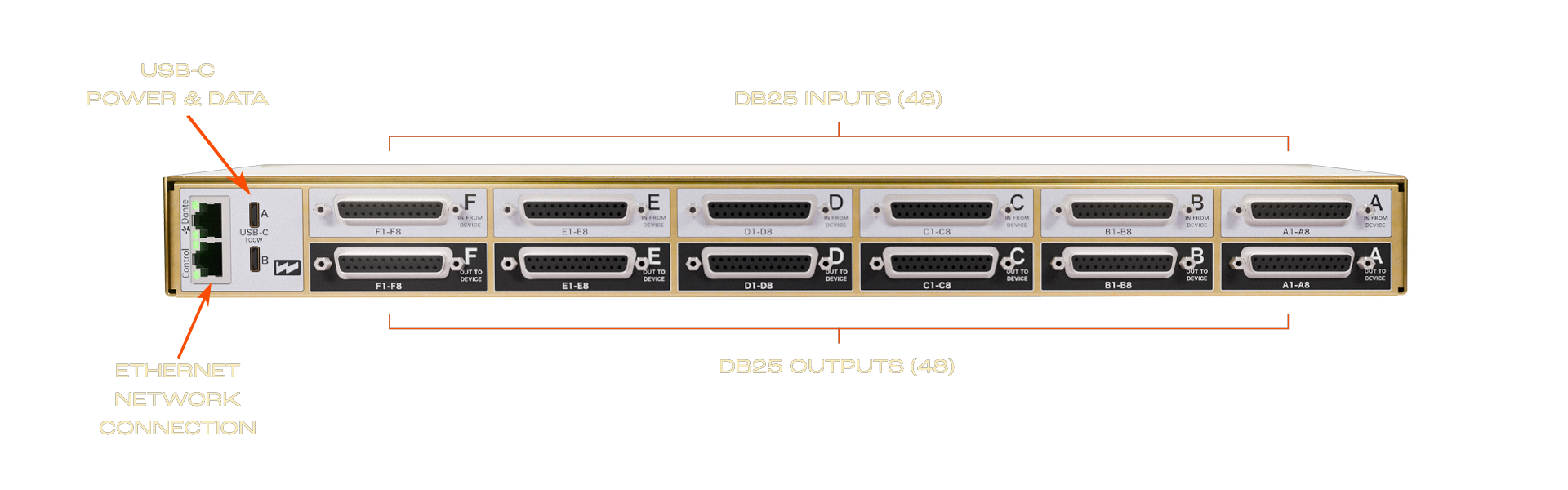

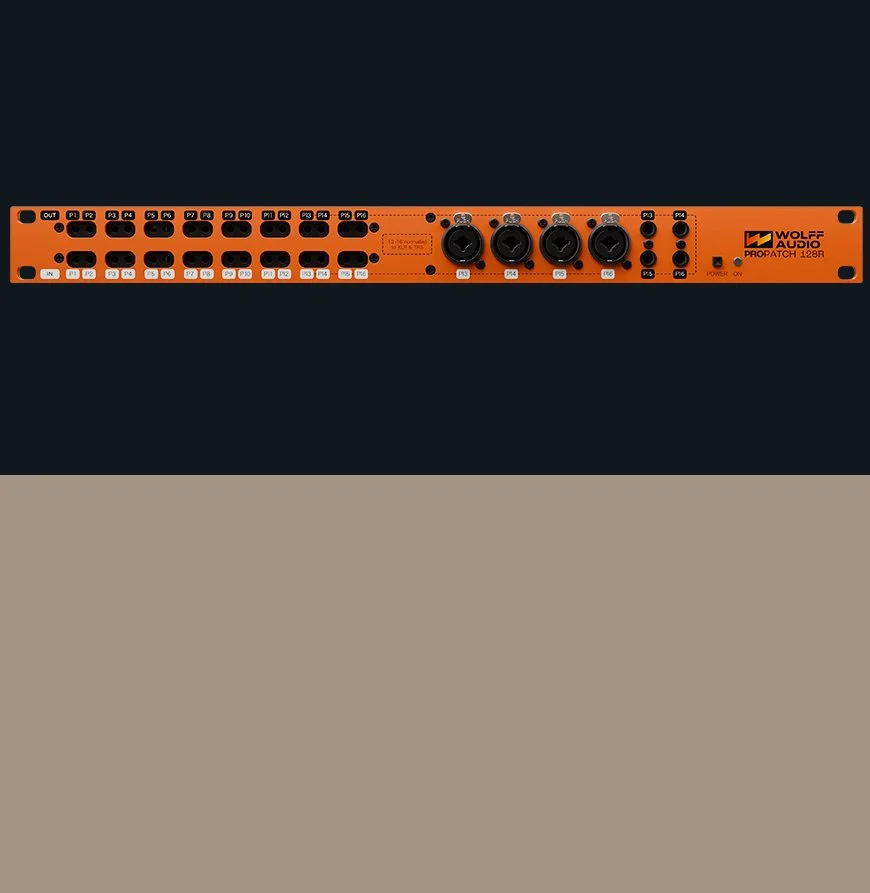

Rear panel DB25 connectors provide 48 channels of I/O, while front panel I/O includes 16 TT I/O pairs, 4 XLR/TRS combi jacks and 4 TRS jacks. Use these to integrate ProPatch into an existing TT patchbay system, quickly connect temporary gear, or scale up and create a larger system by interconnecting multiple ProPatch units.
Eliminate the usual workflow pause experienced when configuring manual patch bay systems and keep projects in the groove and flowing with ProPatch.
Software-controlled Analog Patchbay
The ProPatch takes up a single rack space, does not generate heat, nor does it require fans. Designed to easily drop-in and replace an existing TT patchbay, the ProPatch may also be integrated with large existing TT patchbay systems via its front panel TT connections. Multiple ProPatches can be chained together to incorporate larger routing systems.
128 patch points are available as 12 rear panel DB25s, 16 TT I/O pairs on the front panel, 4 XLR/TRS combo jacks and 4 TRS jacks.
"Wolff Audio did it right by keeping the electronics out of the circuit and making the audio connections via relays. ProPatch wouldn't be in my mastering chain if it didn't sound the same as straight wire."
Pete Lyman | Mastering Engineer | Infrasonic
Jared Vogt | Co-founder of Wolff Audio
Dive deep with Jared Vogt, creator of the ProPatch, and learn what inspired the monumental task of building a relay-based patchbay.
SPECIFICATIONS
128 PATCH POINTS, 64 X 64 I/O, ANY-TO-ANY ROUTING
STRAIGHT WIRE PERFORMANCE, RELAY BASED, ZERO ELECTRONICS IN THE SIGNAL PATH
FREQUENCY RESPONSE FROM DC TO LIMIT OF THE TEST EQUIPMENT
0% DISTORTION AND NOISE, DC TO LIMIT OF THE TEST EQUIPMENT
100% BALANCED INTERNAL SIGNAL PATH
CONFIGURE ROUTING PRESETS FOR INSTANT RECALL
LAST USED PROPATCH CONFIGURATION IS NON-VOLATILE AND AUTO-LOADS ON POWER UP
USE THE “WOLFF HOUND” UTILITY APP TO CONNECT TO A PROPATCH ON THE NETWORK
CREATE SIGNAL CHAINS WITH “AB” BLOCKS TO AUDITION ALTERNATE DEVICES AND PATHS
ACCEPTS MULTIPLE SIGNAL TYPES INCLUDING MIC, LINE, CONTROL VOLTAGE, MIDI AND TIMECODE
PASSES 48V PHANTOM POWER. SWITCHING IS INSTANT, ALLEVIATING PHANTOM SHORT ISSUES
HIGHEST CHANNEL DENSITY PER RACK UNIT OF ANY PATCHBAY (TRADITIONAL OR AUTOMATED)
SINGLE RACK UNIT CHASSIS, NO HEAT, NO FANS
WHAT’S IN THE BOX?
WIFI ANTENNA
POWER SUPPLY (UBIQUITOUS USB-C)
